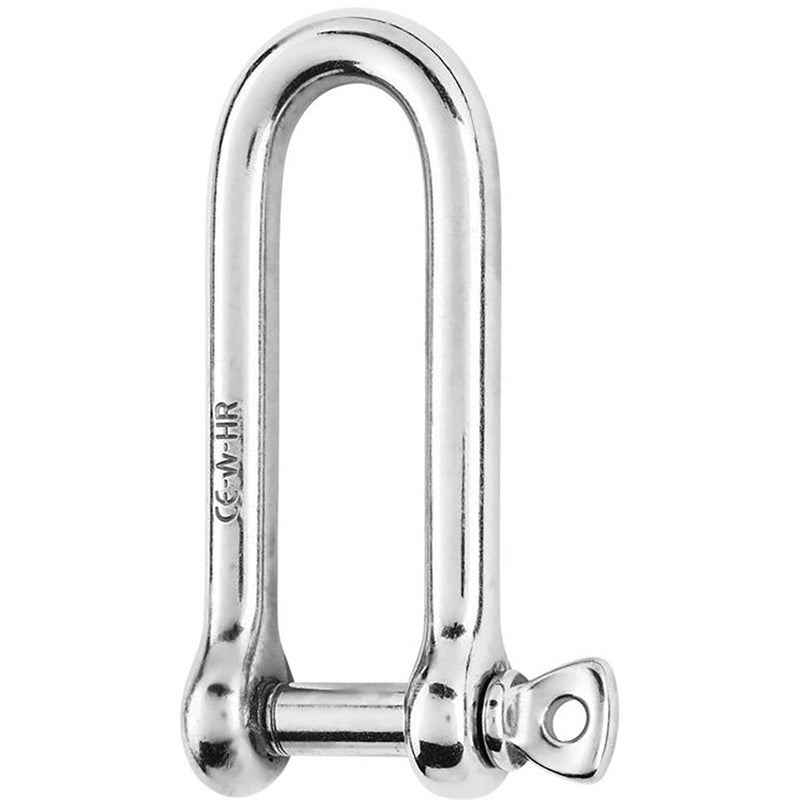

Wichard HR Long D Shackle - 10mm Diameter - 25/64" [11215W]

HR Long D Shackle - 10mm Diameter - 25/64"

Features:

• Forged long shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Applications requesting high loads
• Standard applications of the shackle
• Attachment applications: blocks, head …
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 5820 / (kg) 2640
• WLL: (lb) 2640 / (kg) 1200
• Breaking load: (lb) 13220 / (kg) 6000
• Weight: (lb) 0.362 / (g) 164

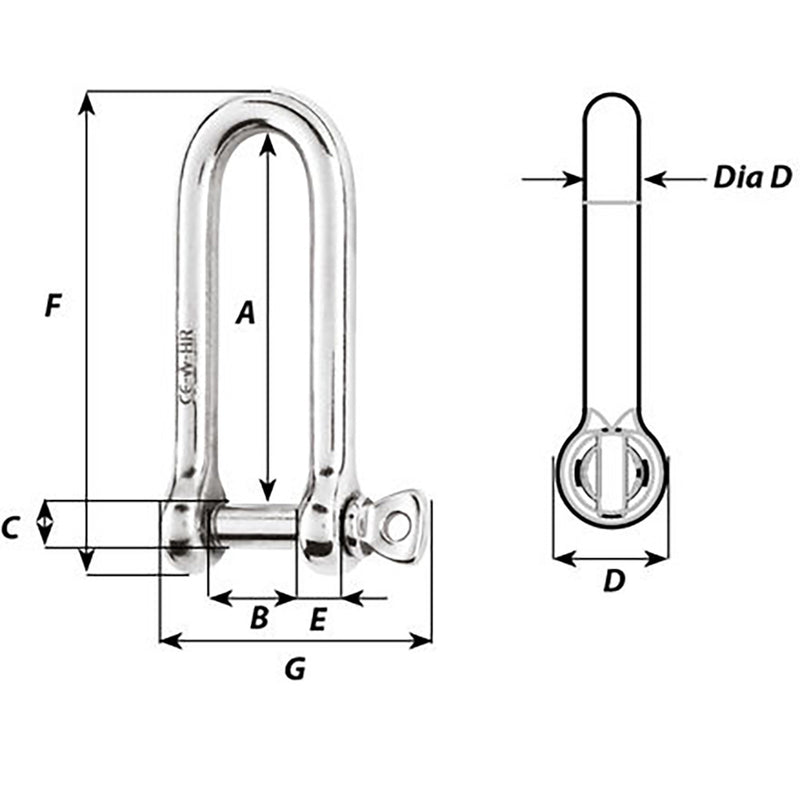

Dimensions:

• A: (inch) 3 5/64" / (mm) 78
• B: (inch) 25/32" / (mm) 20
• D diameter: (inch) 25/64" / (mm) 10

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual
