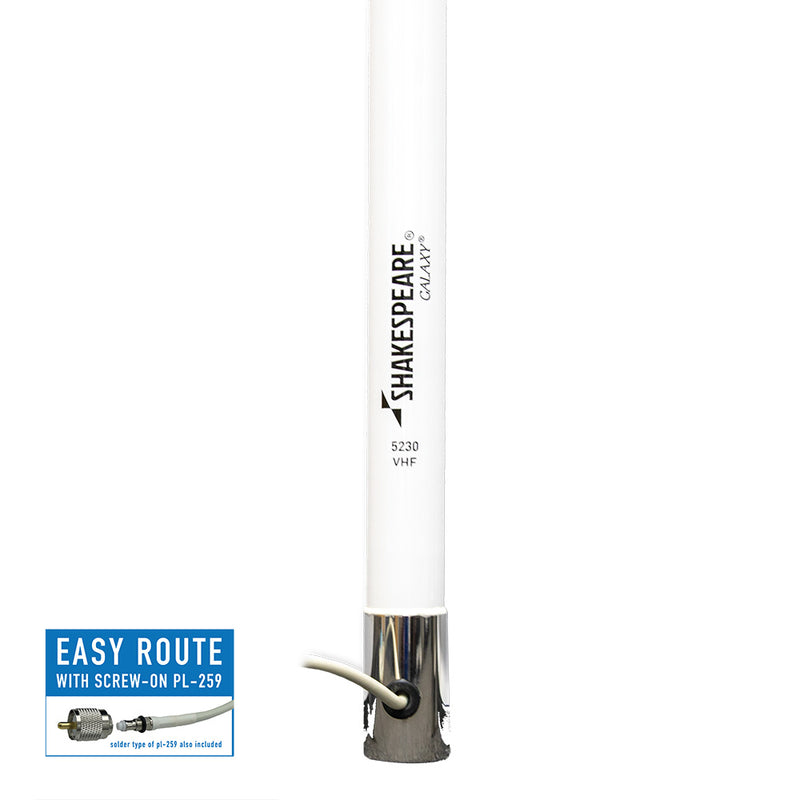

Shakespeare Galaxy 5230 14' VHF Antenna - 8dB Gain [5230]

Galaxy 5230 14' VHF Antenna - 8dB Gain

The ultra-performer, Shakespeares Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.

Features:

• 5/8 wave over 1/2 wave dipole
• Brass and copper elements for maximum range and efficiency
• Stainless steel ferrule with standard 1"-14 thread
• Includes 20 feet of RG-8/X cable and a PL-259 connector
• Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit

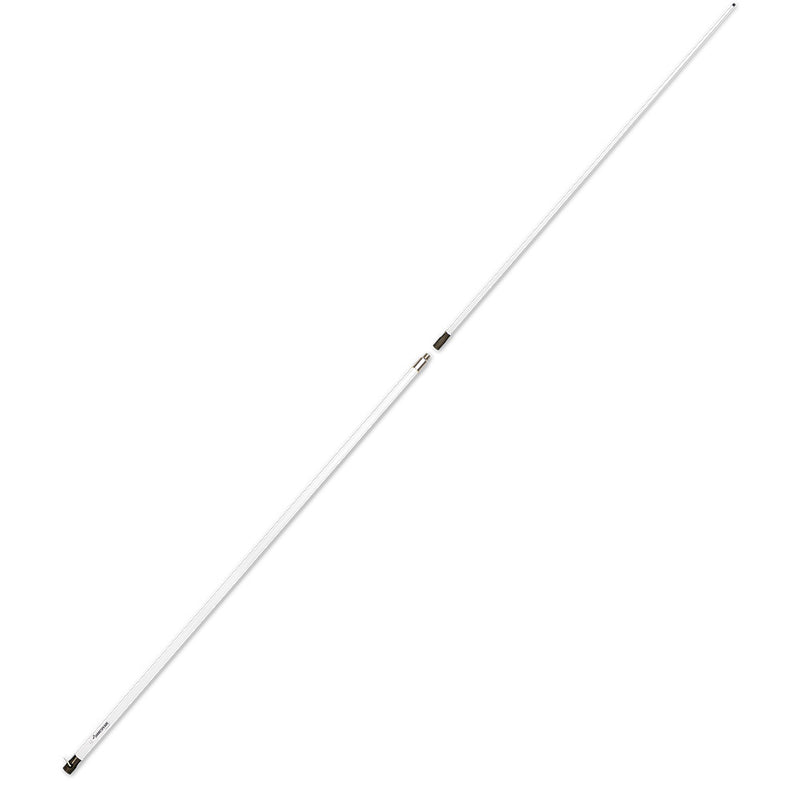

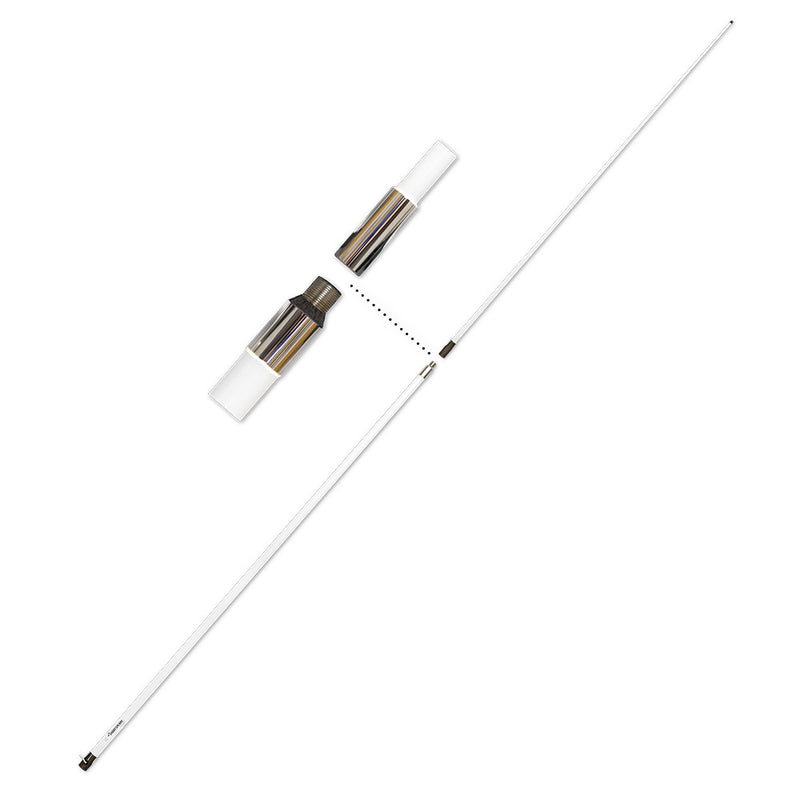

• Two sections: Base 94", Tip 74" -
• Shakespeare Limited Warranty: 5 years

Technical Specifications:

• Frequency: VHF Marine Band
• Bandwidth: 3 MHz within 2.0:1 VSWR
• SWR: Nominally 1.5:1 at 156.8 MHz
• Impedance: 50 ohms
• Gain: 8 dB
• Max Input (Watts): 200 watts
• DC Ground: YES
• Height (feet): 14
• Polarization: Vertical

Specifications:

• Antenna Band: VHF
• Color: White
• Construction: Fiberglass
• Ferrule Type: Stainless Steel
• Length (Inches): 168"
• Box Dimensions: 3"H x 3"W x 95"L WT: 11 lbs
• UPC: 719441200084
