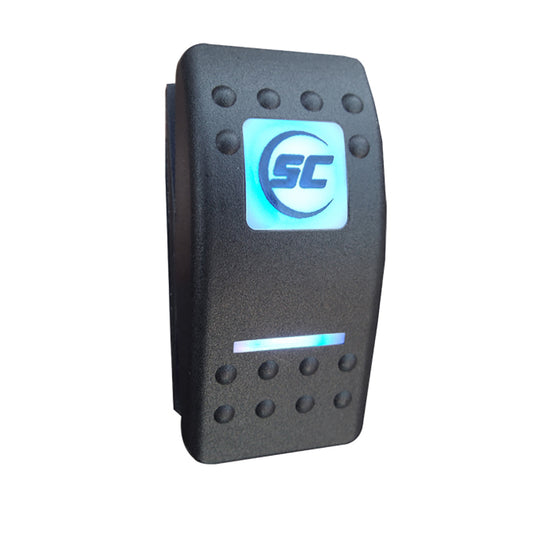

ShadowCaster 3Position OnOffMomentary Marine LED Lighting Switch SCMSWITCHOOM

Shadow-Caster 3-Position On/Off/Momentary Marine LED Lighting Switch [SCM-SWITCH-O/O/M]

SKU: RF-88257

$40.25
$40.25 $42.99
Sale Sold out
/
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

3-Position On/Off/Momentary Marine LED Lighting Switch

On / Off / Momentary Marine LED Lighting Switch for two-color and multi-color lighting – simply toggle power to set color choice. For use with fishing boats, pontoon boats, sports boats, and yachts.

Features:

  • Power On/Off
  • Color change
  • Multiple fade mode changes

Specifications:

  • Off/On/Momentary
  • LED Voltage Rating: 12V (Add 600ohm resistor between pin 7 and ground for 24V operation)
  • LED Color: Blue x 2
  • Terminals: Brass or copper/silver plate 1/4” (6.3mm) quick connect
  • Sealing IP66/68, for above-panel components of actual switch only
  • Operating Temp. -40°C to +85°C
  • Contact Rating: 20 amps, 4-14VDC and 15 amps, 15-28VDC
  • Switch and actuator color: Black

Note: Use with SCM-SNLC single-zone lighting controller to access full ShadowNET® lighting control functionality.
