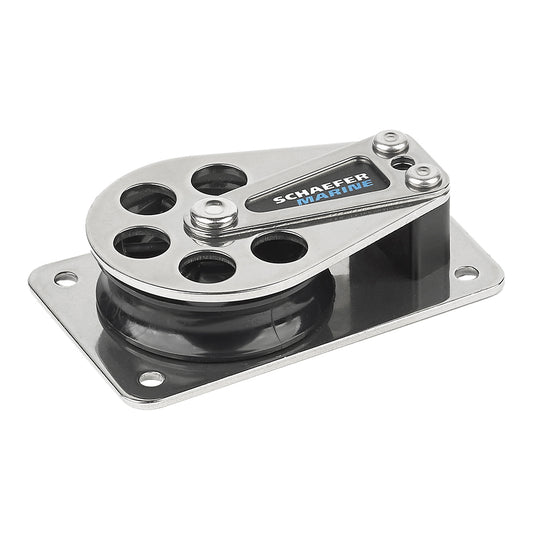

Schaefer Series 5 Flat Base Cheek Block Stainless Steel Cheeks 50511

Schaefer Series 5 Flat Base Cheek Block - Stainless Steel Cheeks [505-11]

SKU: RF-74727

$93.99
$93.99 $126.55
Sale Sold out
/
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Series 5 Flat Base Cheek Block - Stainless Steel Cheeks

Series 5 Cheek Block with Stainless Steel cheek. Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

  • Sheave Diameter 2" (51 mm)
  • Max. Line 7/16" (11 mm)
  • Length 3-5/8" (92 mm)
  • Width 2-7/32" (57 mm)
  • Height 7/8" (22 mm)
  • Fasteners (4) #10 - RH (5 mm)
  • C/C 3" (76 mm)
  • SWL 1750 lbs. (795 kg)
  • Weight 6.9 oz. (196 g)
  • Max Line 7/16" (11mm)
