Scanstrut SB-8-5 Junction Box [SB-8-5]

SB-8-5 Junction Box

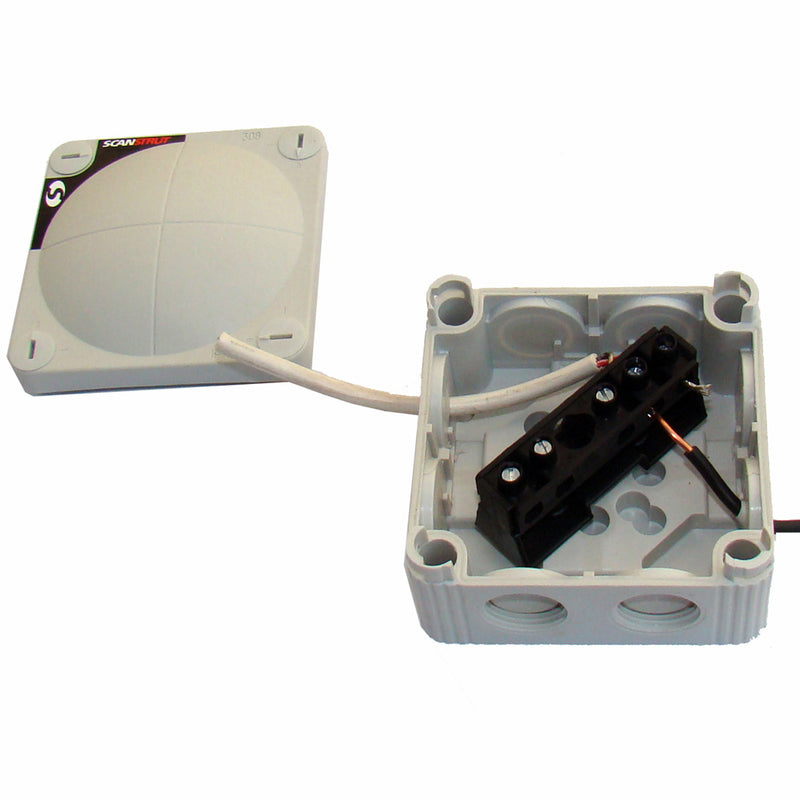

Scanstrut's SB-8-5 Junction Box is perfect for installations if you need to create a waterproof connection for multiple electrical cables.

Heavy-duty junction box manufactured from marine grade polypropylene and with features 5 screw-down terminals.

Depending on the number of terminations required the terminal blocks can be individually fitted or blocked together.  Supplied with 5 modular terminal blocks.  Offering 5 terminations.

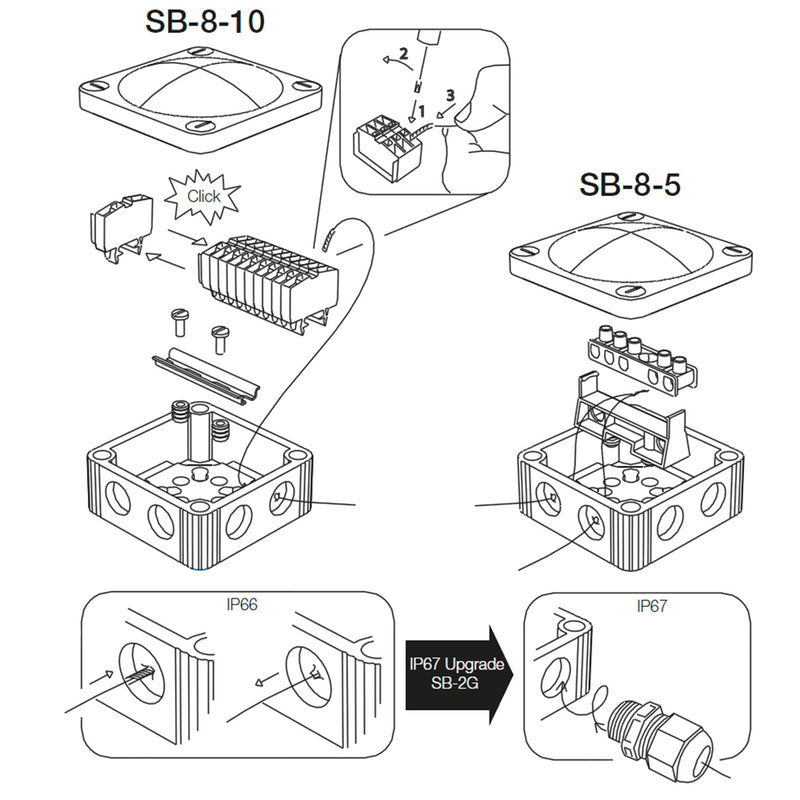

Cables push fit into the terminals and are secured with a sprung leaf retention system that does not damage the wire.  The terminal can be removed for easy fitting of cables.

Features:

• Provides 5 screw-down terminals.
• Capacity for up to eight (8) cables to enter the box.
• Watertight Installation - Cables are quickly routed into the box through an IP66 elastomeric membrane, guaranteeing protection against water ingress.
• Upgradable to IP68 with use of SB-2G Cable Seals (sold separately)

Technical Specifications:

• Maximum cable size (diameter) - .50" (12 mm)
• Maximum wire size - 16/1.5 to 11/4
• Dimensions (L x W x H) - 3.35" x 3.35" x 2" (85  x 85 x 50 mm)
• Five (5) terminal block w/400 V rating and 32 A
• Color - Grey
• Material - Marine grade polypropylene

In the Box:

• Junction box w/five (5) screw-down terminal block
• Mounting hardware
• Installation manual

*Sold as an Individual

Specifications:

• Type: Junction Box
• Box Dimensions: 2"H x 4"W x 4"L WT: 0.29 lbs
• UPC: 5060114793439
