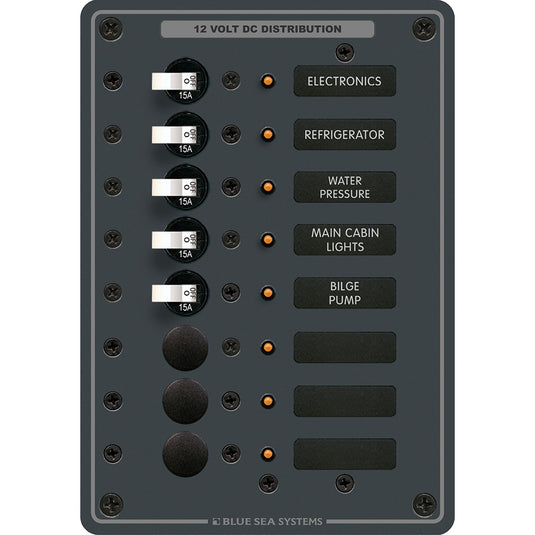

Blue Sea 8023 DC 8 Position Circuit Breaker - White Switches [8023]

8023 DC 8 Position Circuit Breaker - White Switches

Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Panels with meters include toggle switch for mounting up to 3 battery banks
• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions

Specifications:

• Positions: 8
• Nominal Voltage: 12v / 24v DC
• Maximum Amperage: 100A
• Height: 7.5"
• Width: 5.25"

Included:

• (5) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
• (1) 8030 Basic DC Panel Label Set - 30 Labels

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 8
• AC/DC: DC
• Voltage: 12/24v
• Box Dimensions: 5"H x 7"W x 12"L WT: 2.03 lbs
• UPC: 632085080235
