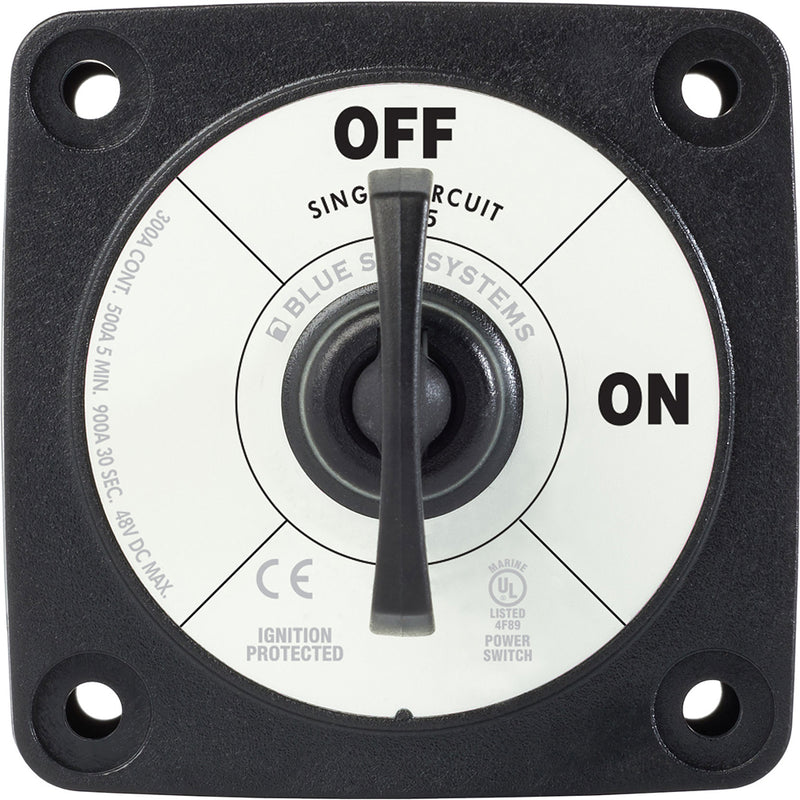

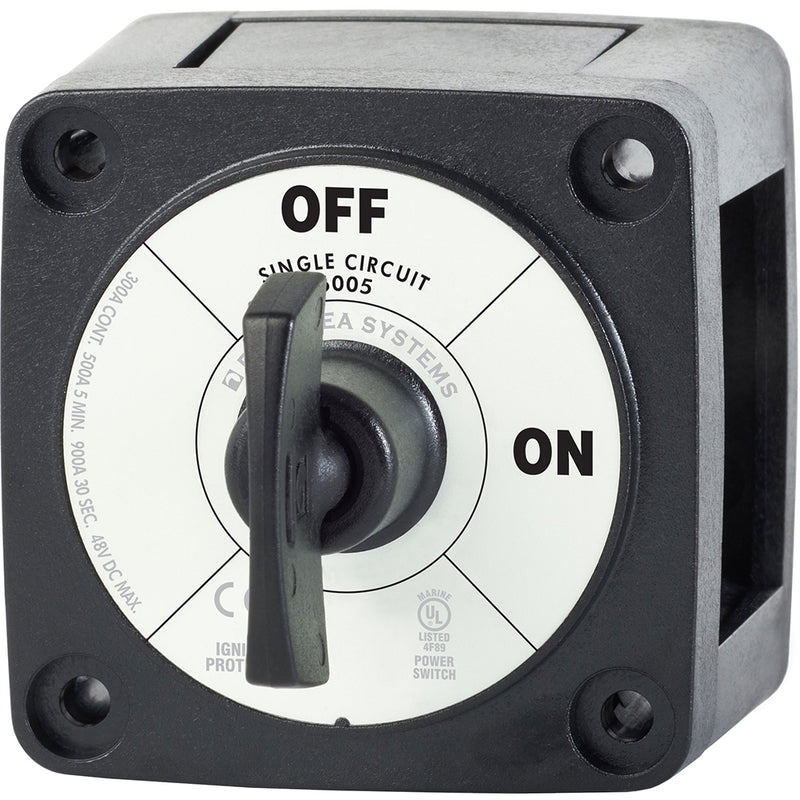

Blue Sea 6005200 Battery Switch Single Circuit ON-OFF - Black [6005200]

m-Series Mini On-Off Battery Switch with Key - Black

Switches a single battery to a single load group Ignition protected-safe for installation aboard gasoline powered boats.

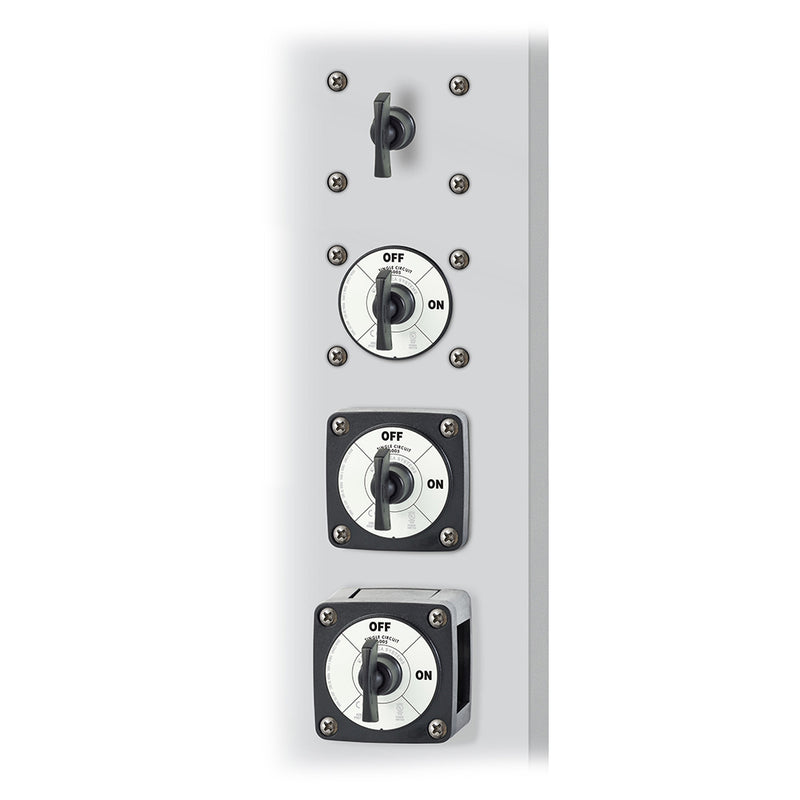

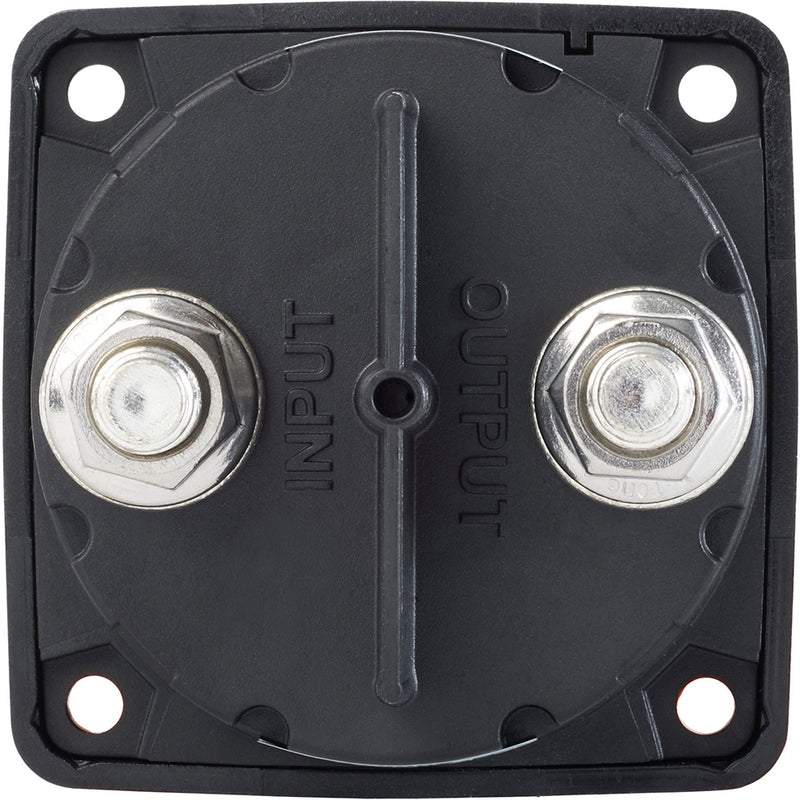

Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts.

Switch Type: Single Circuit ON-OFF
Color: Black
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 48V DC
Continuous Rating : 300A
Intermittent Rating : 500A (5 min)
Cranking Rating 10 sec: 1500A
Cranking Rating 1 min: 775A
Battery Inputs: 1
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.62lb (0.28/ kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AFD: No
• Continuous Amperage: 300a
• Box Dimensions: 3"H x 4"W x 7"L WT: 0.65 lbs
• UPC: 632085600525
