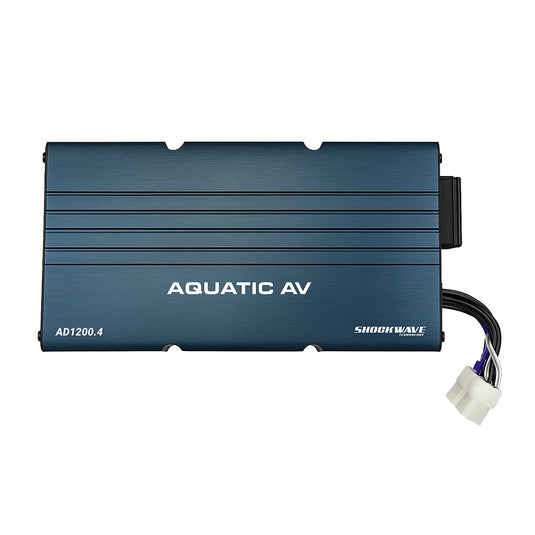

Aquatic AV AD1200.4 4-Channel Amplifier [AD124]

AD1200.4 4-Channel Amplifier

Designed for the harshest conditions, this Class D digital amplifier delivers high-performance power with a compact footprint, making it the perfect choice for marine, powersports, and multi-environment applications.

Specifications:

• Environmental Protection: IP65 Rating
• Power Output (Max) @ 4 Ohms: 760W (4x 190W)
• Power Output (Max) @ 2 Ohms: 1,200W (4x 300W)
• RMS @ 4 Ohm (Bridged): 4x 520W
• Frequency Response: 20Hz - 20kHz
• Signal-to-Noise Ratio: 90dB
• THD: ≤0.5%
• Input Sensitivity: 12V - 0.2V
• Best Efficiency: >80%
• Minimum Load: 2 Ohm
• Current Draw: 103A
• Overload Protection System: Yes
• Overheat Protection Temperature: 75°C
• Operating Voltage: 9V - 16V DC
