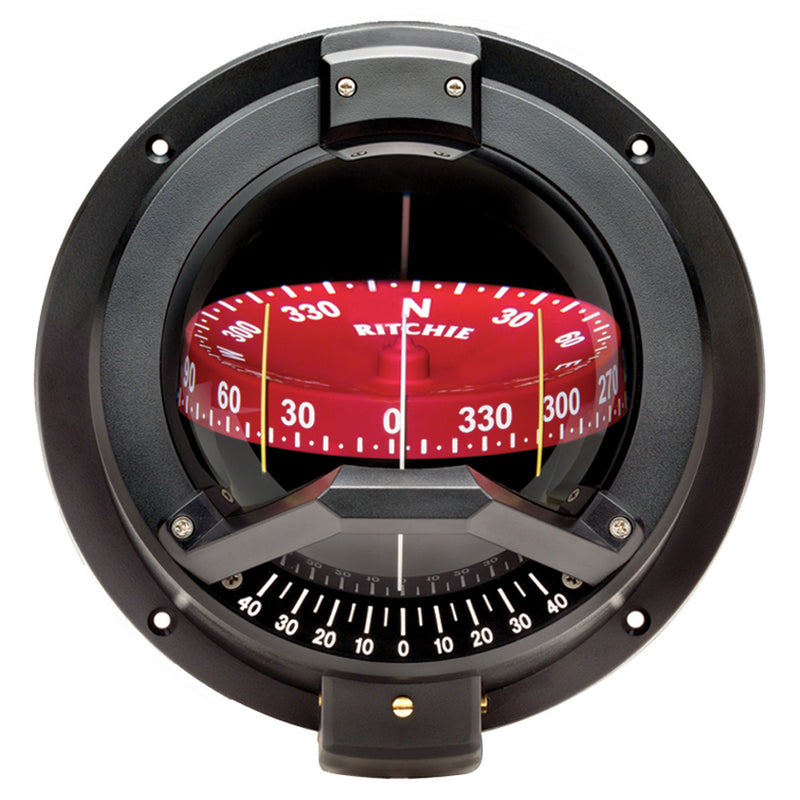

Ritchie BN-202 Navigator Compass - Bulkhead Mount - Black [BN-202]

Navigator Compass

Features:

• 4 1/2″ (115 mm) Ritchie CombiDial and Built-in Inclinometer
• When mounting this Compass to a bulkhead that is NOT perpendicular (90° angle) to the center-line of the boat and/or NOT vertical (90° angle) to the waterline of the boat (boat on level keel), a fairing block MUST be used to make the compass so.

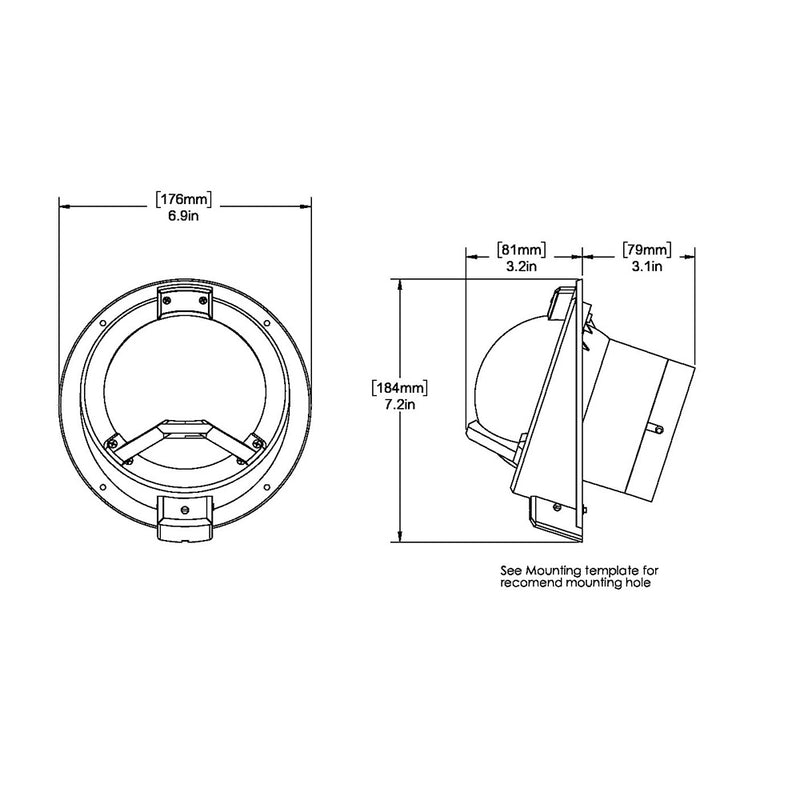

• Easily Installed, Fits 5.75″ (146 mm) Mounting Hole
• Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
• Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
• Fiberglass Reinforced Bowl
• 45 degree Lubber Lines
• Exclusive Built-in 12v Amber LED Lighting
• Built-in Compensators to Easily Adjust for Deviation
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 2 lbs 5 oz (1.05 kg)

Notes:

12v lighting standard - 24 & 32v lighting options are available.

Specifications:

• Mounting Style: Bulkhead
• Lubber Lines: Yes
• Read: Both
• Backlight: Yes
• Box Dimensions: 7"H x 8"W x 8"L WT: 3.13 lbs
• UPC: 010342150301
